Design of Weapon Module

Diagram

---
config:
  layout: dagre
---
classDiagram
direction TB
    class Weapon {
	    EntityID id
    }

    class TransformComponent {
	    position
	    rotation
	    scale
    }

    class FacingComponent {
	    facing
    }

    class OwnerComponent {
	    ownerEntity
	    offset
    }

    class WeaponTimingComponent {
	    coolDownInterval
	    attackSpeed
	    lastFiredAt
    }

    class WeaponRenderComponent {
	    textureName
	    anchorPoint
	    initRotation
    }

    class WeaponEffectsComponent {
    }

    class WeaponEffect {
    }

    class SpriteComponent {
	    content
	    tint
	    layer
	    renderSize
	    anchorPoint
    }

    class ConsumeManaEffect {
	    amount
    }

    class SpawnProjectileEffect {
	    speed
	    effectiveRange
	    damage
	    spriteName
	    collisionSize
    }

	<<interface>> WeaponEffect

    Weapon *-- TransformComponent
    Weapon *-- FacingComponent
    Weapon *-- OwnerComponent
    Weapon *-- WeaponTimingComponent
    Weapon *-- WeaponRenderComponent
    Weapon *-- WeaponEffectsComponent
    WeaponEffectsComponent o-- "0..*" WeaponEffect : effects
    Weapon <.. SpriteComponent
    WeaponEffect <|-- ConsumeManaEffect
    WeaponEffect <|-- SpawnProjectileEffect

Patterns

Command pattern

Encapsulate a request as an object, allowing queueing, validation, cancellation, and replay independently of execution.

Used in FireCommand,ReloadCommand, ..., CommandQueue, CommandValidationSystem, CancelCommand, CommandQueues

CommandQueues store all CommandQueue instances, which are queues of one specific typed Command structs (e.g. FireCommand, ReloadCommand).

We plan to have the following commands for player actions:

Command	Description
FireCommand	Emitted on trigger pull. FiringSystem is the primary consumer. BurstFireComponent generates synthetic FireCommands for subsequent shots within a burst.
ReloadCommand	Triggers the reload in ReloadSystem. Auto-emitted by ResourceSystem when ammo hits 0 if auto-reload is enabled.
SwitchWeaponCommand	Swaps active weapon slot. SwitchWeaponSystem cancels in-flight bursts and enforces per-slot cooldowns.
CancelCommand	Cancels a pending command before it is consumed. Useful for interrupting reloads on dodge roll.
AimCommand	Updates aim direction, stored in AimStateComponent. Read by FiringSystem at fire time.

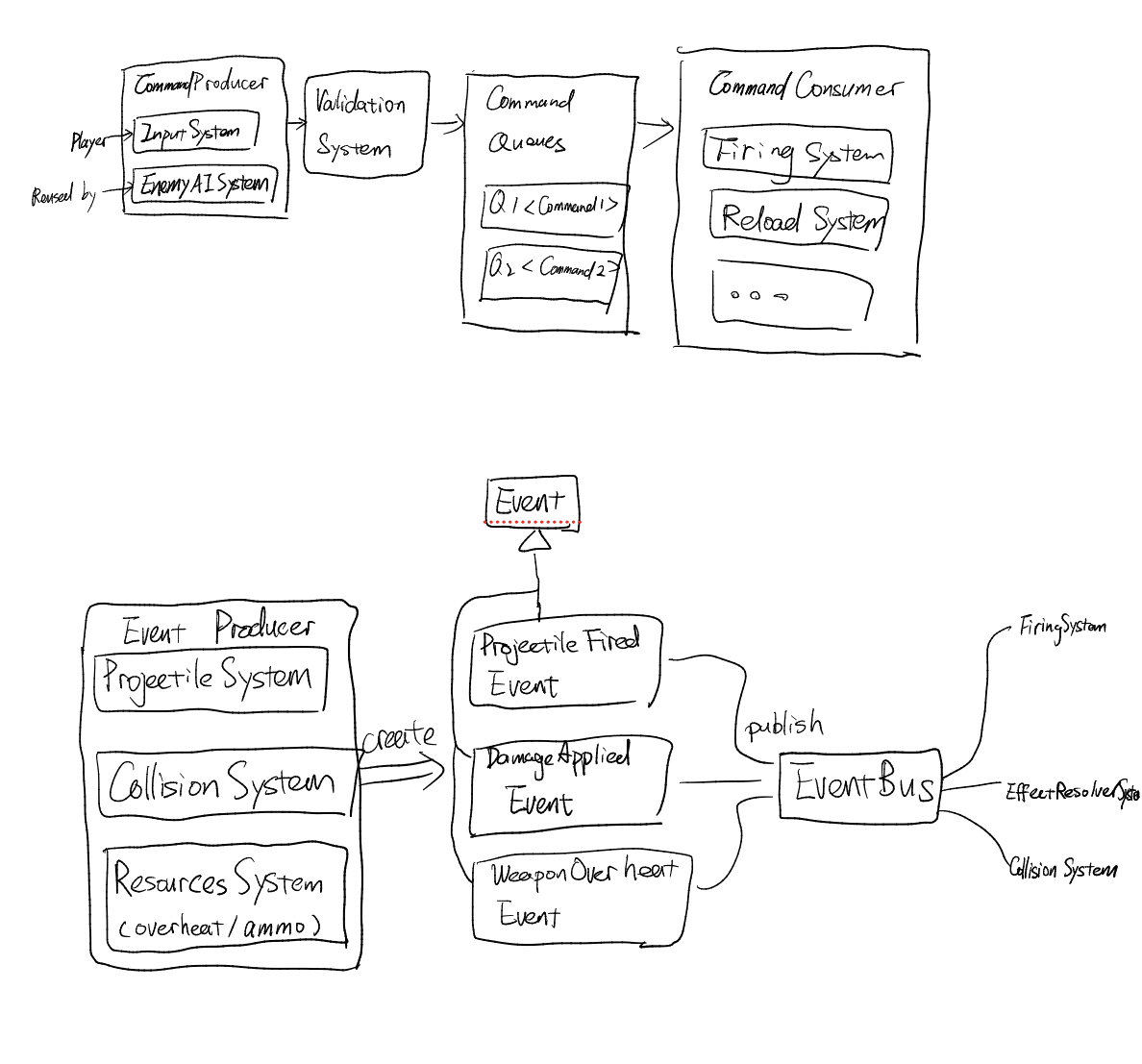

See for a visual of how these commands flow through the systems and also the event bus as below.

Every player or AI action (Command) becomes a typed struct pushed onto the CommandQueue of its own. This decouples the input layer from the execution layer completely. e.g. the AI does not call FiringSystem.fire(), it pushes a FireCommand.

CommandValidationSystem acts as the guard, so no execution system ever needs to check ammo, mana, or cooldowns itself.

CancelCommand lets you abort queued actions (e.g. cancel a reload on dodge roll) without touching the reload state machine. We use similar concept as Optional in Java to mark a command as cancelled without removing it from the queue, so the state machine can still see the cancelled command and reset to idle instead of trying to execute it and failing due to missing resources.

The process for adding a new command:

1. Define the command struct that adapts to Command protocol
2. Find the producer of the command (e.g. player input, AI decision, or an existing system) and make it push the command onto CommandQueue in update loop
3. Create a new system that consumes the command.
4. Register the command into CommandQueues in GameScene

   commandQueues.register(SwitchWeaponCommand.self)
   commandQueues.register(MoveCommand.self)

Observer pattern

Used in EventBus, ProjectileFiredEvent, DamageAppliedEvent, ...

We have Event Bus to handle one-to-many dependency so systems never call each other directly.

e.g. FiringSystem publishes ProjectileFiredEvent; ResourceSystem, AnimSystem, and AudioSystem all subscribe independently.

Adding a new subscriber (e.g. AchievementSystem listening for WeaponBrokenEvent) requires zero changes to existing systems.

Modules

Projectile

Weapon

Why WeaponRenderer exists: SpriteComponent can be removed when hiding secondary weapon. On switch, you need a stable place to recover which texture to restore. WeaponEffectsComponent/WeaponTimingComponent should not carry render data.

How to add a new weapon type

In current design, we plan to support weapons in categories below:

Category	Description	Examples
Gun	ranged weapon that fires projectiles.	handgun, sniper
Melee	close combat weapon that applies damage directly.	sword
Launcher	ranged weapon that fires projectiles with splash damage and trajectory projectile	bazooka
Throwable	one-time use weapon that can be thrown.	molotov cocktail
Laser gun	ranged weapon that fires instant hit scan projectiles.	laser rifle

To add a new weapon type, you need to:

1. Think about what behavior should this weapon have when it is "fired". (here we define "fired" as a general term which is triggered when ownerInput.isShooting and isReadyToFire(gameTime: gameTime, timing: timing) are both true)
   • as an example, a shotgun should fire projectile (modeled as SpawnProjectileEffect) and consume mana (modeled as ConsumeManaEffect).
   • as another example, a sword should swing, apply damage to target in range (MeleeDamageEffect) and consume stamina (ConsumeStaminaEffect).
2. If the behavior can be achieved by existing Effects, simply add those effects to the weapon's WeaponEffectsComponent.
3. If the behavior cannot be achieved by existing Effects, create a new Effect and add it to the weapon's WeaponEffectsComponent.
4. If you feel the need to store additional data for this weapon type, create a new Component and add it to the weapon entity.
   • as an example, since sword need to swing, we can create a WeaponSwingComponent to control the animation of the swing. This component will be added to all weapon entity that can swing (e.g. sword, axe, but not gun or bow).

How firing works

What is WeaponEffect?

WeaponEffect is a protocol that defines the behavior of a weapon when it is fired.

It has a single method apply(context: FireContext) -> FireEffectResult that takes in a FireContext and returns a FireEffectResult.

FireContext contains general info about the action, including weapon, owner, firing direction and firing position. (note we intended separate firing position from weapon position or owner posotion considering some weapon can fire from a different position other than the owner position, e.g. a turret or a trap)

FireEffectResult is an enum that can be either .success, .blocked(String). This is to indicate whther the pipeline is successful or blocked by some effect.

When a FireCommand is consumed by FiringSystem, it will first check if the weapon is ready to fire (e.g. not on cooldown, has enough ammo/mana/stamina, etc). If it is ready, it will create a FireContext and apply all effects in WeaponEffectsComponent sequentially.

    for effect in effectsComponent.effects {
        let result = effect.apply(context: fireContext)
        if case .blocked = result {
            blocked = true
            break
        }
    }

I hope user will find this design quite configurable and flexible. For example, since we already have handgun, it will be very easy to create other gun type like sniper or assault rifle by simply reusing the projectile spawning effect and just tweaking the parameters (e.g. damage, projectile speed, fire rate, etc).

For example, let's say we want to create a Rifle AK-47, we can modify argument to WeaponEntityFactory

    // handgun
    let handgun = WeaponEntityFactory(
        player: player,
        textureName: "handgun",
        offset: weaponOffset,
        scale: scale,
        lastFiredAt: 0,
        coolDownIntervel: TimeInterval(0.2),
        attackSpeed: 1,
        effects: [
            ConsumeManaEffect(amount: 5),
            SpawnProjectileEffect(
                speed: 300, effectiveRange: 400,
                damage: 15, spriteName: "normalHandgunBullet",
                collisionSize: SIMD2<Float>(6, 6))
        ],
        anchorPoint: nil,
        initRotation: nil
    ).make(in: world)
    // AK-47
    let ak47 = WeaponEntityFactory(
        player: player,
        textureName: "ak47",
        offset: weaponOffset,
        scale: scale,
        lastFiredAt: 0,
        coolDownIntervel: TimeInterval(0.1),
        attackSpeed: 1,
        effects: [
            ConsumeManaEffect(amount: 5),
            SpawnProjectileEffect(
                speed: 400, effectiveRange: 400,
                damage: 20, spriteName: "normalAK47Bullet",
                collisionSize: SIMD2<Float>(6, 6))
        ],
        anchorPoint: nil,
        initRotation: nil
    ).make(in: world)

Interpretation of some existing configurable parameters:

• textureName: The name of the texture to be used for the weapon sprite.
• offset: The position offset of the weapon sprite relative to the owner (player or enemy).
• scale: The scale of the weapon sprite (dependent on the texture).
• lastFiredAt: The absolute timestamp of the last time the weapon was fired, used for cooldown calculation. See Cooldown below for more details.
• coolDownInterval: The time interval between two consecutive shots. See Cooldown below for more details.
• attackSpeed: A multiplier that can be used by effects to modify the firing behavior. For example, it can be used to increase the speed of projectile or reduce the cooldown time if needed (currently not in used by 04/02/2026)
• effects: A list of effects that will be applied when the weapon is fired. See Effects Section above for more details.
• anchorPoint: The anchor point of the weapon sprite, which determines the rotation point. If nil, it will default to the center of the sprite as (0.5, 0.5). We need this parameter because some weapon sprite may need to rotate around a different point other than the center, e.g. a sword may need to have anchor point at the handle instead of the center of the sprite to achieve better visual effect.
• initRotation: The initial rotation of the weapon sprite in radians. If nil, it will default to 0.

In side effects, there is more to configure depending on the type of effect you include

For example, ConsumeManaEffect need the amount of mana to consume for each shot

SpawnProjectileEffect need the speed of projectile, effective range of projectile, damage of projectile, sprite name of projectile and collision size of the projectile to be spawned.

As an example, if you use knight as the spriteName in SpawnProjectileEffect, you will get a gun that fire knight (although kinda insane).

Cooldown:

    private func isReadyToFire(gameTime: Float, timing: WeaponTimingComponent) -> Bool {
        guard let cooldown = timing.coolDownInterval else { return true }
        return (gameTime - timing.lastFiredAt) >= Float(cooldown)
    }
